91 Dodge Stealth ES Police Pursuit Special



91 Dodge Stealth - (Shown with old Wheels and no Spoiler)



 This was my very first Dodge Stealth.  The Stealth was SOLD in January 30, 2003, but I still have some of the extra stuff (police electronics & Stereo, shown below if anyone is interested.) Keep in mind the equipment was installed in this car almost 29 years ago.  Pretty state of the art at the time, (back in 1993) but very unimpressive by today's standards...


(Click on any picture for full size photo)

Here's the exterior before the face lift

Front/left view Front View Front\right view Rear/left view

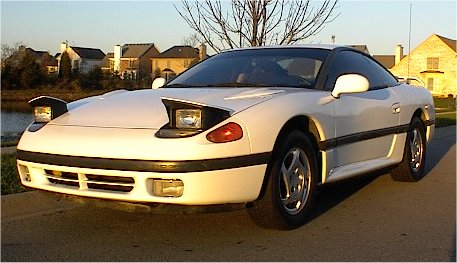

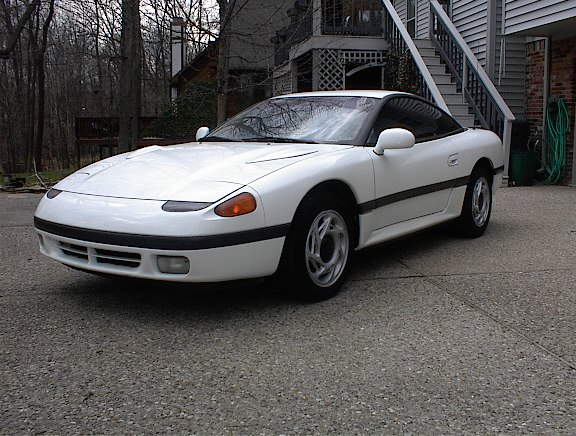

Here's the exterior AFTER new paint, wheels, & rear spoiler

stealthright1.jpg (63175 bytes) stealthfrtlft1.jpg (39692 bytes) stealthback2.jpg (37934 bytes) stealthfrtlfteyes.jpg (37327 bytes)

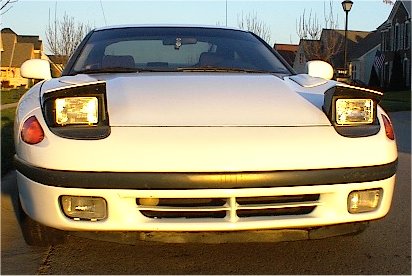

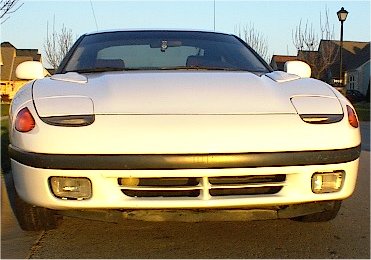

stealthfrt1.jpg (23119 bytes) stealthfrt2.jpg (27830 bytes) stealthfrteyes2.jpg (34268 bytes) stealthfrteyes1.jpg (37524 bytes)

Here is the old interior

Driver Side Interior Passenger side interior Rear interior view Odometer picture taken earlier in summer.  Mileage is closer to 79K now.

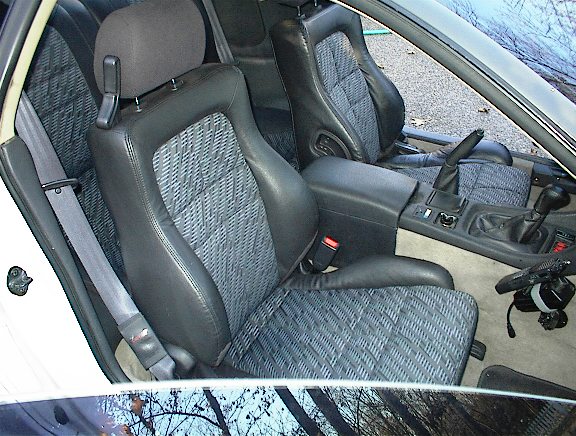

Here is the NEW interior from 95 3000GT

Interior10.JPG (93459 bytes) Interior9.JPG (96750 bytes) interior07.JPG (91826 bytes) interior11.JPG (92896 bytes)

Close-Up of tear in back seat interior06.JPG (85158 bytes) View of Sound Equipment with Rear Seats folded down View of Rear Seats.  3 Power Amps?? WHERE??

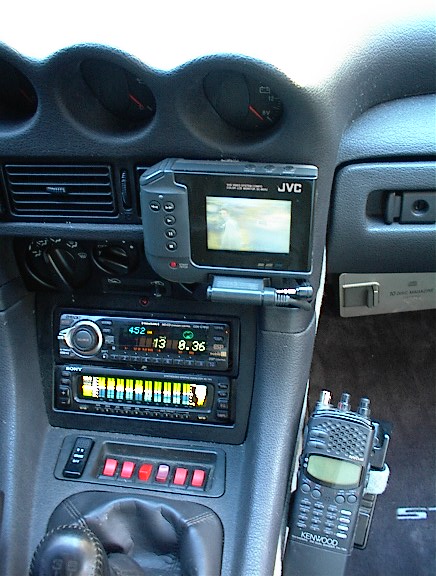

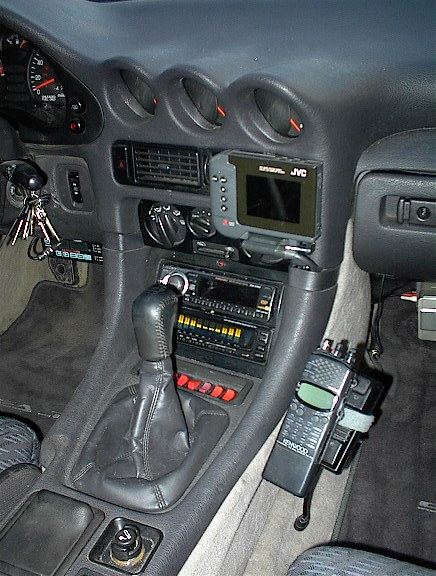

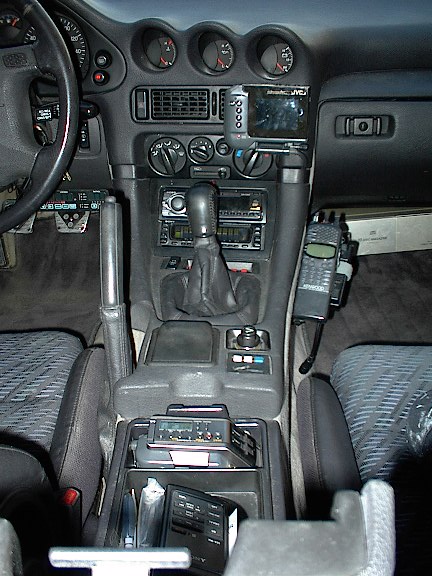

Actual view of Center Console Center Console View View of center console (VCR Visable in console and LCD Monitor playing movie) Close Up View of Stereo and LCD monitor

Wow!  In 1993 this had an LCD Video monitor that you could play movies on via the Super VHS-C VCR!

Can you imagine?  An LCD Screen in your car?  This is still when everyone owned CRT Monitors and Televisions...

Check out the picture below!

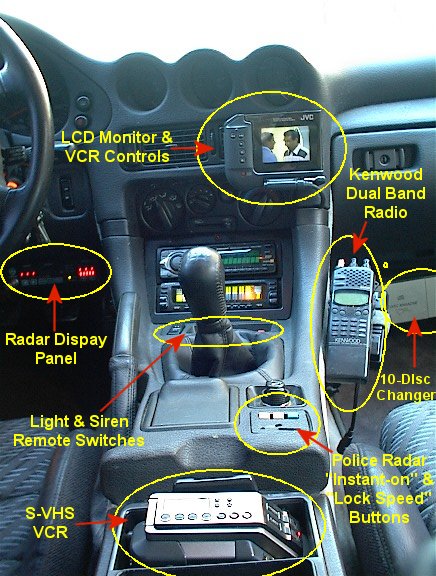

New Interior Labeled



Here are some photo's of the "extra" equipment. Custom Sub enclosure, Kenwood 1023 and Orion AMP is sold. I still have the Sony Electronic EQs and the Rockford Punch 150 as of 3/05/2020.

Cockpit closeup Center console View through trunk of Power Amplifiers with Seat Down Top view of Power Amplifiers

Cockpit view (TV) View with Rear Seat folded down (4) 10" Kicker Competition Subs in Custom Enclosure! JVC Remote camera mounted to rear view mirror

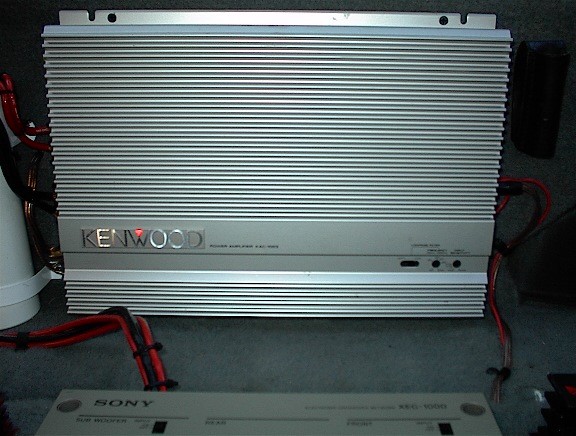

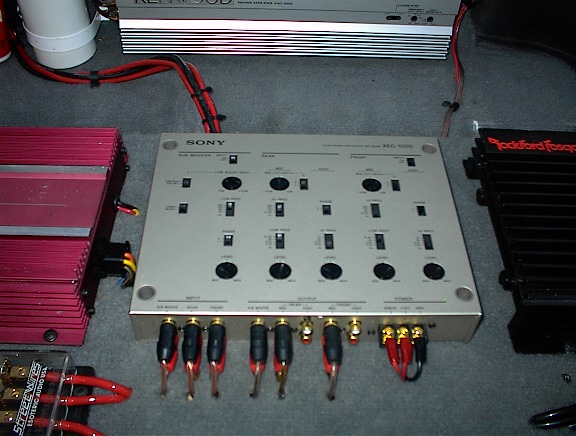

Rockford Fosgate Punch 150 for Rear 6x9 Speakers Sony XEC100S Electronic Crossover Orion HCCA-225 Amp for front speakers only Kenwood KAC-1023 1200 W amp (Just for SUBS!)

Detailed view of Center Console Cockpit with call-outs (old interior)

Here are the photo's of exterior flaws before fixing

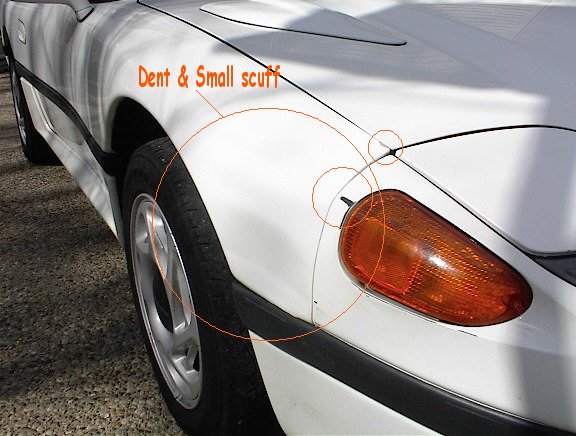

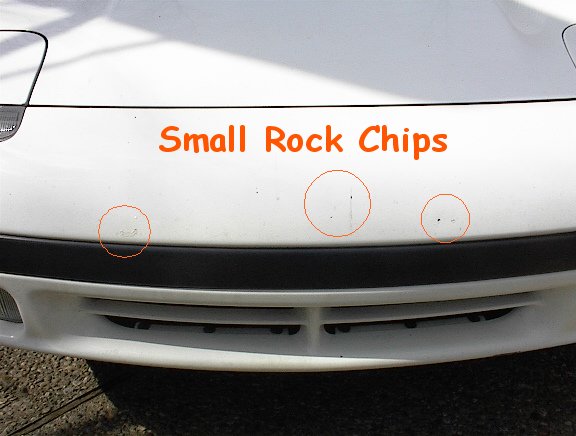

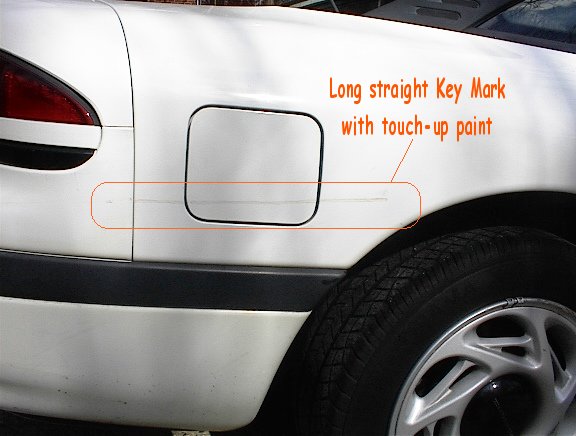

Close-up of Scratch on Right Quarter Panel (all repaired!) Damage Left Front Fender (All repaired now..see photo below) Rock Chips on Front of car - All Repaired! Front underside view of Hidden K-Band Radar Antenna

Rear view of small dent in Trunk lid (Now Repaired & Spoiler added!) Damage to front right wheel (All wheels replaces with '95 Wheels)

I still have the set of 4 OEM Wheels (Like shown above) off this car although two of them have severe curb rash. (I have sold the center caps)

Here are the photo's of exterior flaws AFTER fixing

Right front fender repaired perfectly!  Key Scratch Gone!  Rear Right Quarter



 I had almost $10,000 invested in just the "extra" equipment in this car, all offers considered!  If you know what this stuff is, then you know what it was worth, and I am open to all offers.

Remember when STROBES were the new Hotness!  LED's hadn't even been thought of yet for vehicles!

- Whelen Universal 4 head 60 Watt Strobe Power Supply powering 2 clear remote "comet flash"  strobes concealed in the front headlights and 2 clear remote "comet flash" strobes (4 total) concealed in the rear tail lights.  Two lighted remote switches built into console to control front & Rear Strobes separately.

Whelen 4 Head 60 Watt power supply under seat 4 Whelen Clear Hide-Away Strobes in healights and tail lights

View the strobes closed.       View the strobes raised.

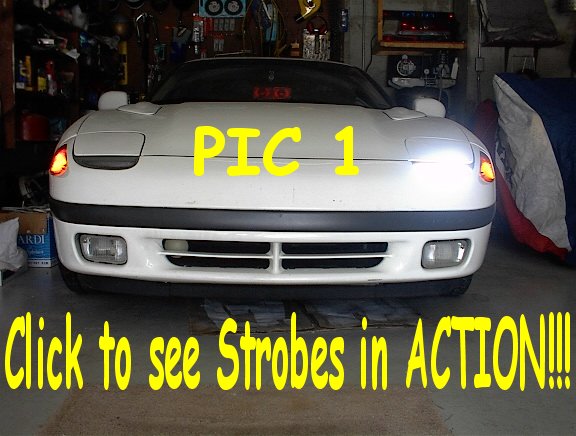

 Click Here to view actual strobe animation in closed position! Click Here to view actual strobe animation in raised position!

(.Gif Files May require a longer download time for slower connections)


- Federal Signal's™ 6-Function Switch Panel SW300 - Although not as pictured above,  my switch panel features (4) 20 Amp fused lighted red rocker switches for Emergency lighting control and 2 other (non-lighted) red rocker switches for siren functions.  My Switch Box WAS a SW300 but has actually been disassembled and custom built into the center console.

Custom Built 6 feature switch Box (Not as pictured)

(Actual switch photo below)

Actual Switchbox shown


- (1) 100 Watt Siren featuring Wail, Yelp, & Air horn mounted under seat with Remote switches built into console. If you have a sound card installed and can play .wav files you can click on these samples of  Air Horn | Wail | Yelp  Once again, this remote siren is custom.  All that can be seen are the two remote switches. (Now installed in another car for airhorn use)

(Picture below shows Passenger Seat removed and the Siren & Strobe Power Supplies)

Pass. Seat removed to show Strobe Power Supply & Siren Control Box


- (1) 100 Watt Speaker concealed in Grille facing downward for maximum reflection of sound.

 100 Watt Speaker mounted behind Grille facing down


- Decatur™ Genesis K band Remote Radar Gun with K band antenna hidden in Grille and custom remote switches custom installed in console.  Radar is capable of capturing speeds while stationary and in moving mode.  It also has the option added of a remote output for transferring patrol and target speed to a video system as well as the option to add a second rear mounted Radar Antenna.

Shown in stationary Mode with antenna inside vehicle. Complete Radar System. (extra antenna & cable not included)

Radar Display Unit mounted under steering column Radar Remote Control Buttons Mounted into center console

Since it's introduction in 1991, the Genesis I™ has become the industry standard for high-performance police radar. This supremely engineered unit, which features stationary and opposite direction moving modes of operation, has three display windows: target speed, target speed lock and patrol speed. This Genesis I™ features a K-band antenna. The computer unit measures 6.50 inches wide x 1.75 inches high x 3.75 inches deep (16.3 cm wide x 4.5 cm high x 9.5 cm deep). The wired remote control shown in picture and been disassembled and installed into the center control below gear shift.  Retails for $1,525.00 (in 1993) with video output.


- Full function JVC SCF007 Police video surveillance system.  Record your DUI arrests!!!  Including wide angle color camera mounted to rear view mirror, the world's lightest and smallest Super VHS-C full function compact Hi-Fi VCR (Yes it can actually record in Super-VHS provided you have compatible tapes!) mounted in center console, and a Full color 3" LCD monitor with VCR remote buttons built into monitor!  The camera features a built in microphone as well as a remote record button and status LED indicators. You can remove this system from the vehicle and use it as a camcorder with the supplied battery pack.  You can also play the VHS-C Tapes on a normal VCR.  This system alone cost over $2000 and YES you could play movies on the VCR and watch them on the monitor with full stereo sound though the car's awesome stereo system.

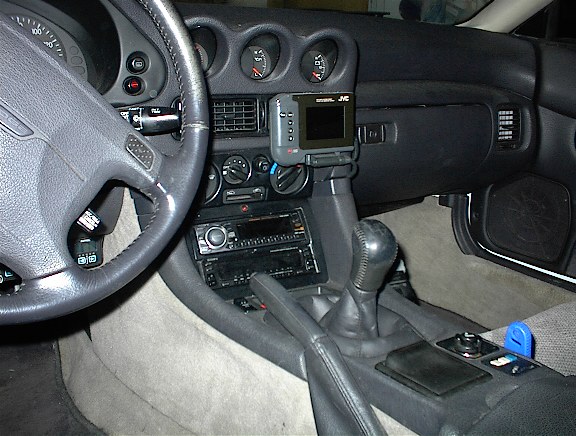

View of center console (VCR Visable in console and LCD Monitor playing movie) Cockpit Closeup of LCD Remote Monitor JVC Remote camera mounted to rear view mirror

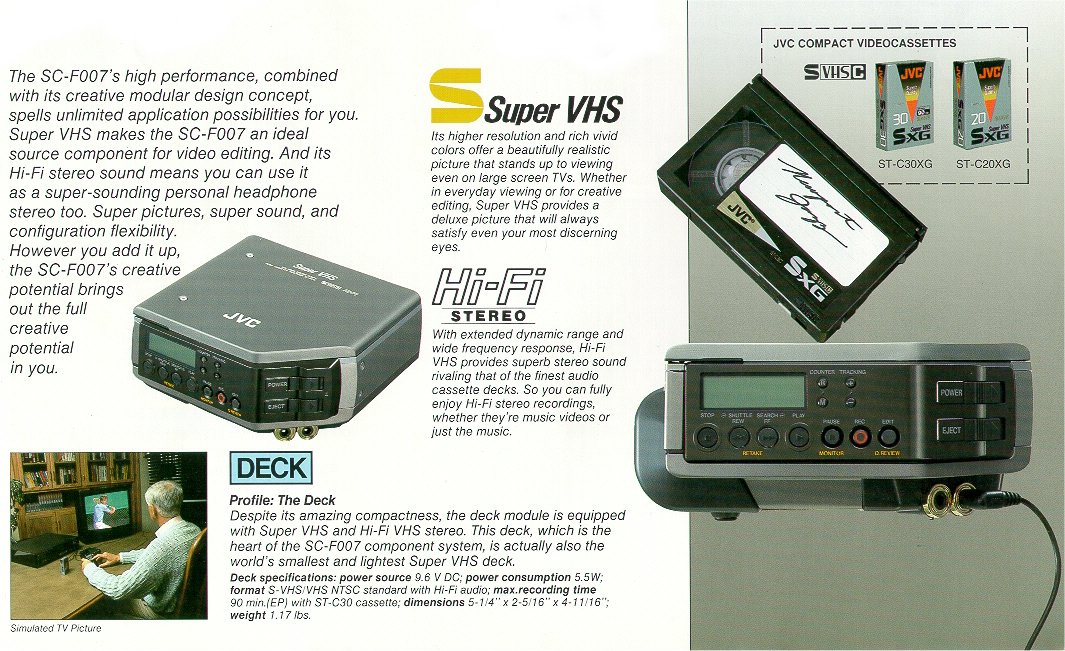

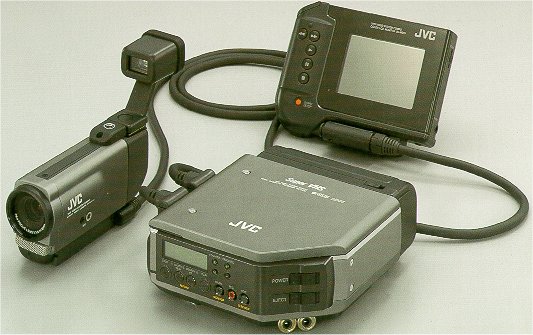

Complete In Car "Silent Partner" system Complete Video System in it's own Metal Suitcase! Click to read about the VCR and get a close up view Full function LCD Monitor - Great for Traffic Stops!

Remote Wide Angle camera with remote record button. Super VHS-C VCR with LCD Monitor in attached mode.




Watch the video of the CROOKS that stealing the wheels off my VIPER   Click HERE for details and Actual Video of the 2 guys Ripping them off!
